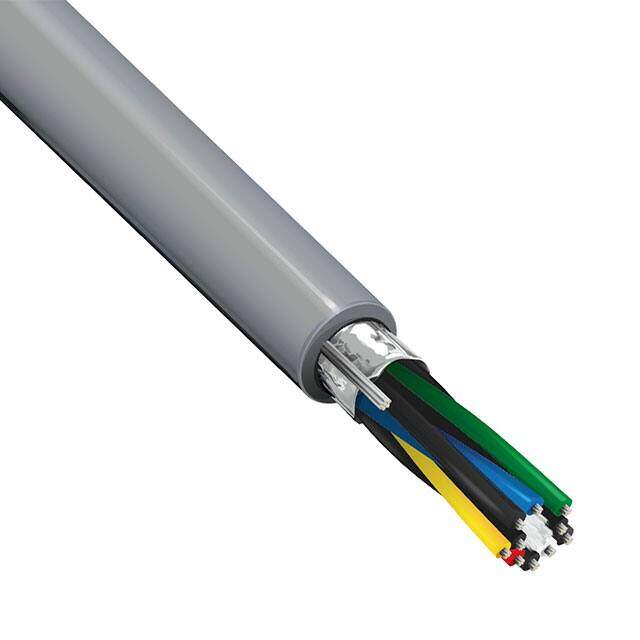

8105 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 10 COND 24AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $826.16
Unit Price: USD $826.1616
≥1 USD $826.1616
≥10 USD $764.3064
≥100 USD $737.79904
≥500 USD $720.126625
≥1000 USD $702.4556
Inventory: 84
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2919
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0350 0.889mm
Length 100.0' 30.5m
Technical
Wire and Cable Name COMMUNICATION CABLE
Rated Voltage 30V
Shield Coverage 100%, 65%
Shield Type Foil, Braid
Rated Current 1.5A
Conductor Insulation Foam Polyethylene (FPE)
Jacket (Insulation) Diameter 0.303 (7.70mm)
Usage Computer
Conductor Strand 7/32
Jacket Color Chrome
Cable Type Multi-Pair
Connector Support Type WIRE AND CABLE
Wire Gauge 24 AWG
Approval Agency CE; CEC; CUL; NEC; UL
Number of Conductors 10 (5 Pair Twisted)
Construction STRANDED
Shielding YES
Resistance 0.079Ohm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Drain Wire
Published 2011
Packaging Spool
Operating Temperature -30°C~80°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material FPE
Supply Chain
Factory Lead Time 6 Weeks
