6302FE 877U500

Belden Inc.
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables

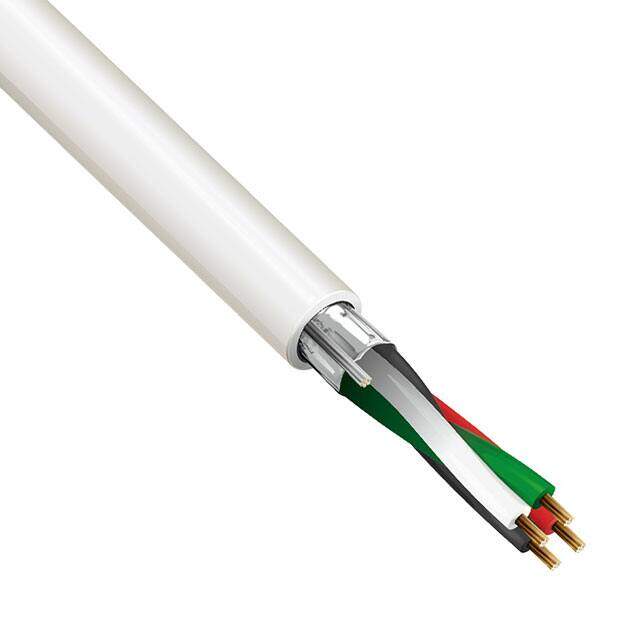

Description CABLE 4COND 18AWG NATURAL 500'
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.309844
≥1 USD $0.309844
Inventory: 5111
Minimum: 1
-
+

Technical Details

Compliance

Ratings UL Style CMP
RoHS Status ROHS3 Compliant

Dimensions

Jacket (Insulation) Thickness 0.0150 0.381mm
Length 500.0' 152.4m

Technical

Shield Coverage 100%
Shield Type Foil
Conductor Insulation Low Smoke Poly-Vinyl Chloride (LSPVC)
Jacket (Insulation) Diameter 0.188 (4.78mm)
Usage Alarm, Security, Sound
Conductor Strand 7/26
Jacket Color Natural
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 18 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Rip Cord
Published 2012
Operating Temperature 0°C~75°C

Physical

Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Conductor Material Copper, Bare

Supply Chain

Factory Lead Time 3 Weeks
