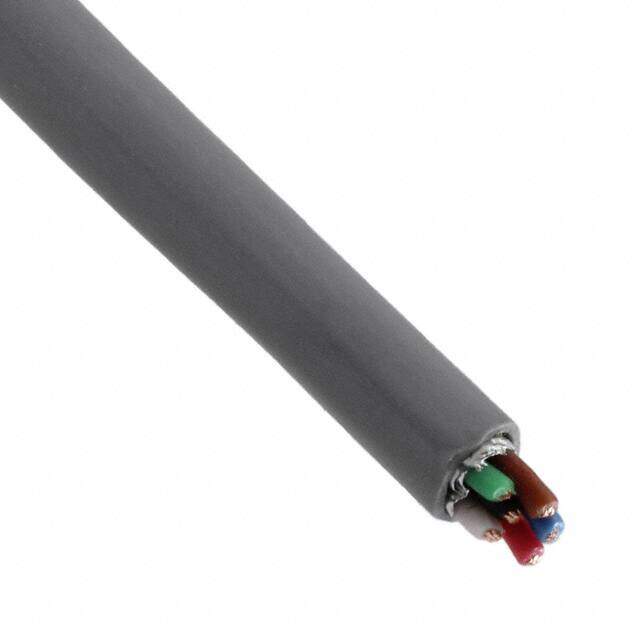

5504FE 008U500

Belden Inc.
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description CABLE 6COND 22AWG GRAY 500'
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.276162
≥1 USD $0.276162
≥10 USD $0.262926
≥100 USD $0.246391
≥500 USD $0.233156
≥1000 USD $0.223238
≥3000 USD $0.214966
Inventory: 7044
Minimum: 1
-
+

Technical Details

Compliance

Ratings UL Style CMR
RoHS Status ROHS3 Compliant

Dimensions

Jacket (Insulation) Thickness 0.0170 0.432mm
Length 500.0' 152.4m

Technical

Wire and Cable Name ELECTRICAL POWER AND CONTROL TRAY CABLE
Rated Voltage 300V
Shield Coverage 100%
Shield Type Foil
Rated Current 2A
Conductor Insulation Polypropylene (PP)
Application COMMERCIAL
Jacket (Insulation) Diameter 0.172 (4.37mm)
Usage Alarm, Security, Sound
Conductor Strand 7/30
Jacket Color Gray
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 22 AWG
Approval Agency CEC; CUL; NEC; UL
Number of Conductors 6
Construction STRANDED
Shielding YES
Resistance 0.054Ohm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Rip Cord
Published 2011
Operating Temperature -20°C~75°C

Physical

Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Riser
Conductor Material Copper, Bare
Insulation Material PP

Supply Chain

Factory Lead Time 3 Weeks
