5402FE 008U500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

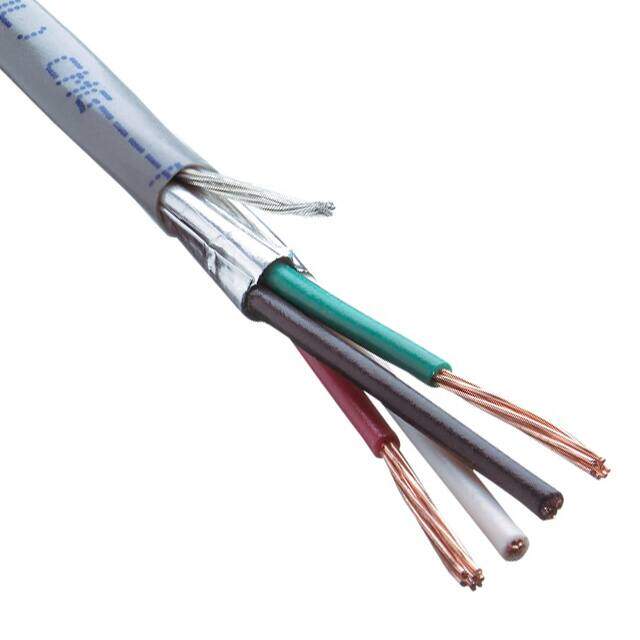

CABLE 4COND 20AWG GRAY 500'
PDF
/
Buying Options
Total Price: USD $171.69
Unit Price: USD $171.688
≥1 USD $171.688
≥10 USD $158.83707
≥100 USD $153.32768
≥500 USD $149.655317
≥1000 USD $145.98232
≥3000 USD $136.80128
Inventory: 32
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Insulation Material PP
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Riser
Shield Material Aluminum
Technical
Operating Temperature -20°C~75°C
Published 2011
Feature Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Shielding YES
Construction STRANDED
Number of Conductors 4
Approval Agency CEC; CUL; NEC; UL
Wire Gauge 20 AWG
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Gray
Conductor Strand 7/28
Usage Alarm, Security, Sound
Jacket (Insulation) Diameter 0.163 (4.14mm)
Conductor Insulation Polypropylene (PP)
Rated Current 3A
Shield Type Foil
Shield Coverage 100%
Rated Voltage 300V
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0170 0.432mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style CMR
