5302FE 008U500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

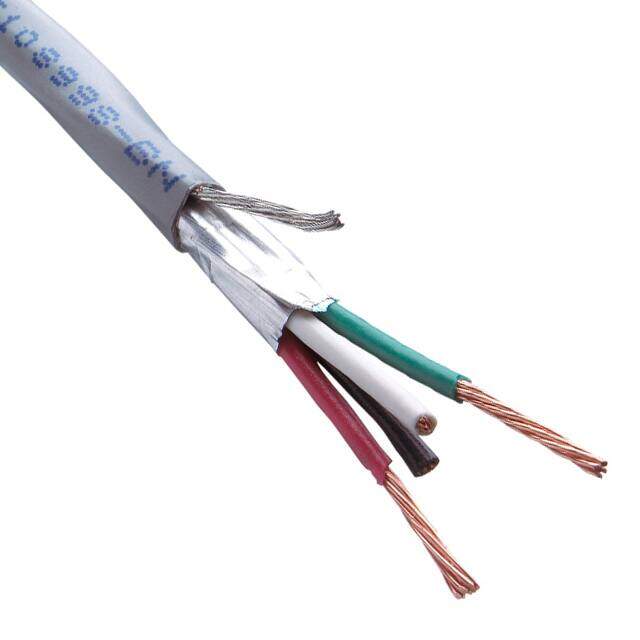

CABLE 4COND 18AWG GRAY 500'
PDF
/
Buying Options
Total Price: USD $231.09
Unit Price: USD $231.088
≥1 USD $231.088
≥10 USD $213.78427
≥100 USD $206.37056
≥500 USD $201.426975
≥1000 USD $196.48464
≥3000 USD $184.126976
Inventory: 100
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style CMR
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0170 0.432mm
Length 500.0' 152.4m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polypropylene (PP)
Jacket (Insulation) Diameter 0.188 (4.78mm)
Usage Alarm, Security, Sound
Conductor Strand 7/26
Jacket Color Gray
Cable Type Multi-Conductor
Wire Gauge 18 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Rip Cord
Published 2012
Operating Temperature -20°C~75°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Riser
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 3 Weeks
