5300FE 008500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

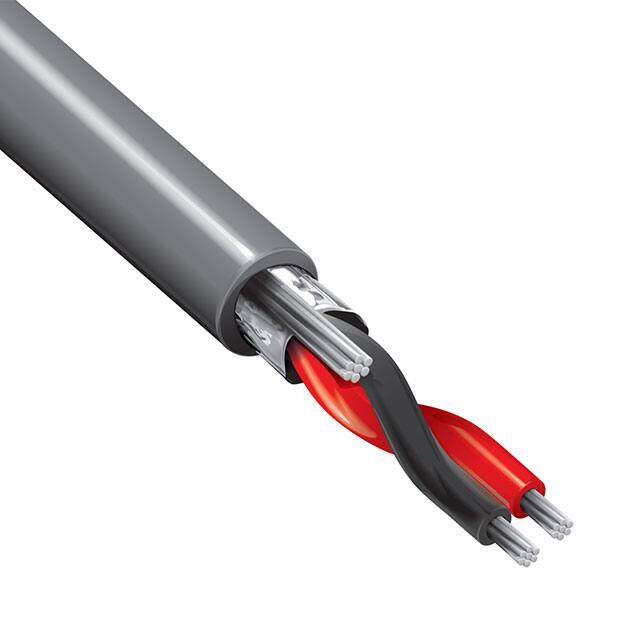

CABLE 2COND 18AWG GRAY 500'
PDF
/
Buying Options
Total Price: USD $64.34
Unit Price: USD $64.3368
≥1 USD $64.3368
≥10 USD $52.63984
≥100 USD $40.942
≥500 USD $35.093344
≥1000 USD $32.7536
≥3000 USD $30.414296
Inventory: 67
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0170 0.432mm
Length 500.0' 152.4m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polypropylene (PP)
Jacket (Insulation) Diameter 0.162 (4.11mm)
Usage Commercial Audio
Conductor Strand 7/26
Jacket Color Gray
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 18 AWG
Number of Conductors 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Rip Cord
Published 2007
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Riser
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 3 Weeks
