3090A 0102500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

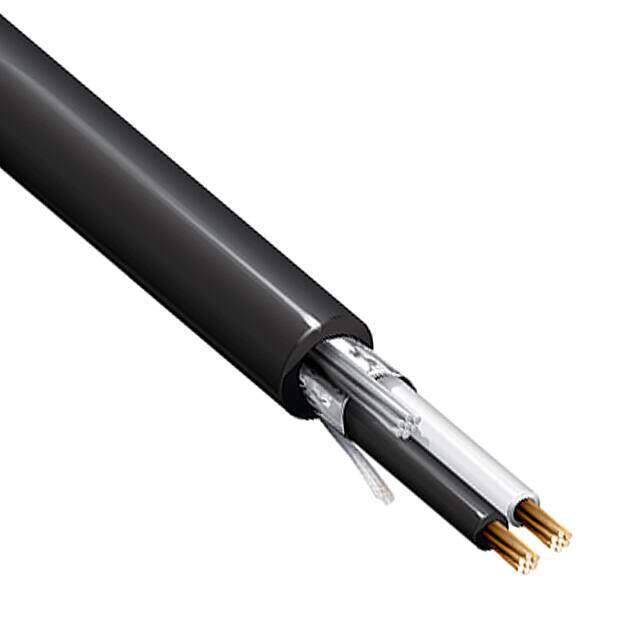

CBL 2COND 16AWG SHLD
PDF
/
Inventory: 7782
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Conductors 2 (1 Pair Twisted)
Wire Gauge 16 AWG
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 7/24
Jacket (Insulation) Diameter 0.300 (7.62mm)
Conductor Insulation Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 2500' 762.0m
Jacket (Insulation) Thickness 0.0470 1.194mm
Compliance
RoHS Status RoHS Compliant
Ratings UL Style 20233
