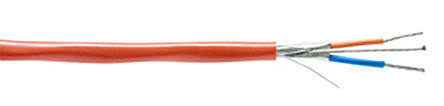

3077F 003500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CBL 1PR 22AWG SHLD
PDF
/
Inventory: 9636
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -30°C~105°C
Packaging Spool
Published 2000
Series DataBus?
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Conductors 2 (1 Pair)
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Orange
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.196 (4.98mm)
Conductor Insulation Polyolefin (PO)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0370 0.940mm
Compliance
RoHS Status RoHS Compliant
