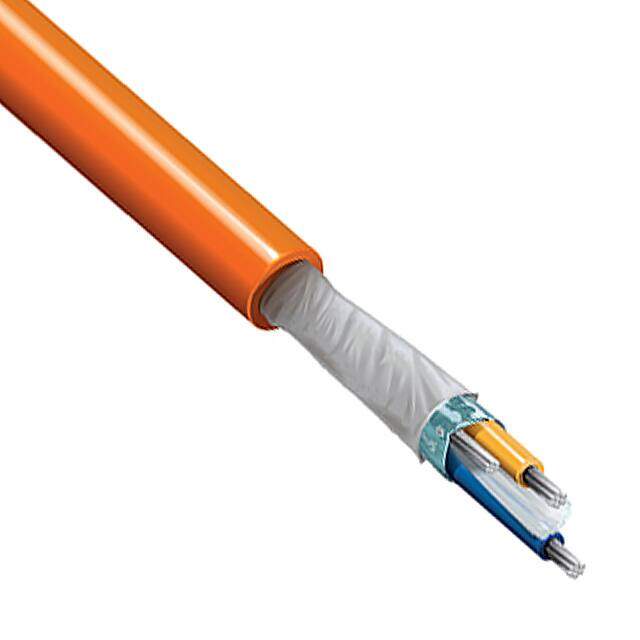

3076F 0031000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CBL 1PR 18AWG SHLD
PDF
/
Buying Options
Total Price: USD $1.57
Unit Price: USD $1.567603
≥1 USD $1.567603
Inventory: 1698
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -40°C~105°C
Packaging Spool
Published 2012
Series DataBus?
Feature Direct Burial, Drain Wire, Oil Resistant, UV Resistant
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Reach Compliance Code compliant
Number of Conductors 2 (1 Pair)
Wire Gauge 18 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Orange
Conductor Strand 7/26
Jacket (Insulation) Diameter 0.280 (7.11mm)
Conductor Insulation Polyolefin (PO)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Compliance
RoHS Status RoHS Compliant
