2121T 0105000
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description

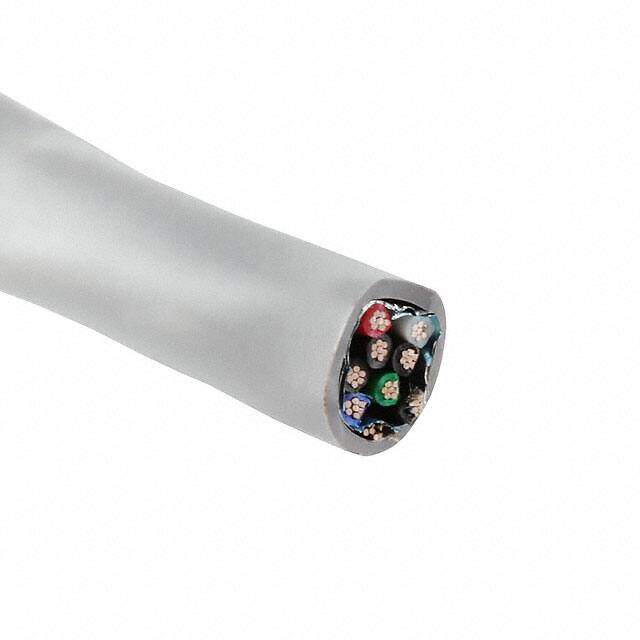

CBL 8PR 18AWG SHLD
PDF
/
Inventory: 3508
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings UL Style TC-ER
Dimensions
Length 5000' 1524.0m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polyolefin (PO)
Jacket (Insulation) Diameter 0.800 (20.32mm)
Conductor Strand 7/26
Jacket Color Black
Cable Type Multi-Pair
Voltage 600V
Wire Gauge 18 AWG
Number of Conductors 16 (8 Pair Twisted)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Drain Wire, Rip Cord, UV Resistant
Series DataBus?
Packaging Spool
Operating Temperature -20°C~90°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Low Smoke Zero Halogen (LSZH)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 5 Weeks
