1334A 0061000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

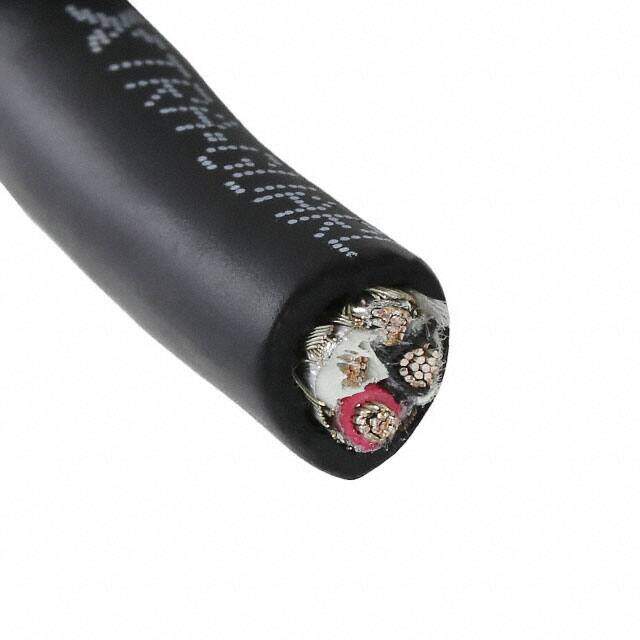

Multi-Conductor Cables 1 PR #18 PP SH FRPVC
PDF
/
Inventory: 1389
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -30°C~90°C
Packaging Spool
Series DataBus?
Feature Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Reach Compliance Code compliant
Number of Conductors 2 (1 Pair)
Wire Gauge 18 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Blue
Conductor Strand 7/26
Jacket (Insulation) Diameter 0.287 (7.29mm)
Conductor Insulation Polyolefin (PO)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 1000.0' 304.8m
Compliance
RoHS Status RoHS Compliant
