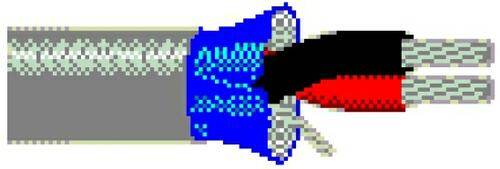

1266A 0101000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
SHLD MULTIPR CABLE 1PR 1000FT 300V BLK
PDF
/
Buying Options
Total Price: USD $83.41
Unit Price: USD $83.4064
≥1 USD $83.4064
≥10 USD $68.244
≥100 USD $53.07896
≥500 USD $45.496352
≥1000 USD $42.462816
≥3000 USD $39.429808
Inventory: 44
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0200 0.508mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polypropylene (PP)
Jacket (Insulation) Diameter 0.143 (3.63mm)
Conductor Strand 7/30
Jacket Color Black
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 22 AWG
Number of Conductors 2 (1 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Published 2011
Packaging Spool
Operating Temperature -20°C~60°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 3 Weeks
