1121A 010500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

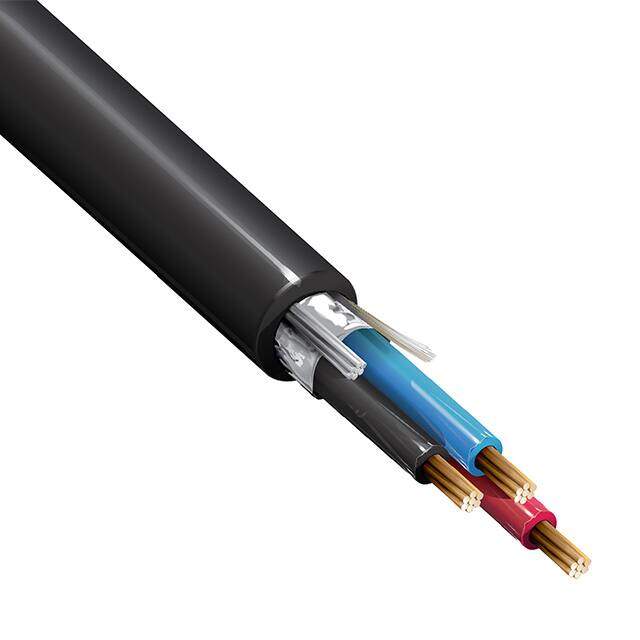

MULTI-PAIR 3COND 18AWG BLK 50'
PDF
/
Buying Options
Total Price: USD $260.52
Unit Price: USD $260.5152
≥1 USD $260.5152
≥10 USD $213.15008
≥100 USD $165.78408
≥500 USD $142.10064
≥1000 USD $132.627264
Inventory: 71
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0470 1.194mm
Length 50.00' 15.24m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon
Jacket (Insulation) Diameter 0.290 (7.37mm)
Usage Industrial
Conductor Strand 7/26
Jacket Color Black
Cable Type Multi-Pair
Connector Support Type WIRE AND CABLE
Wire Gauge 18 AWG
Number of Conductors 3 (1.5 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire, Oil Resistant, Rip Cord
Published 2006
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 6 Weeks
