M4635 SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

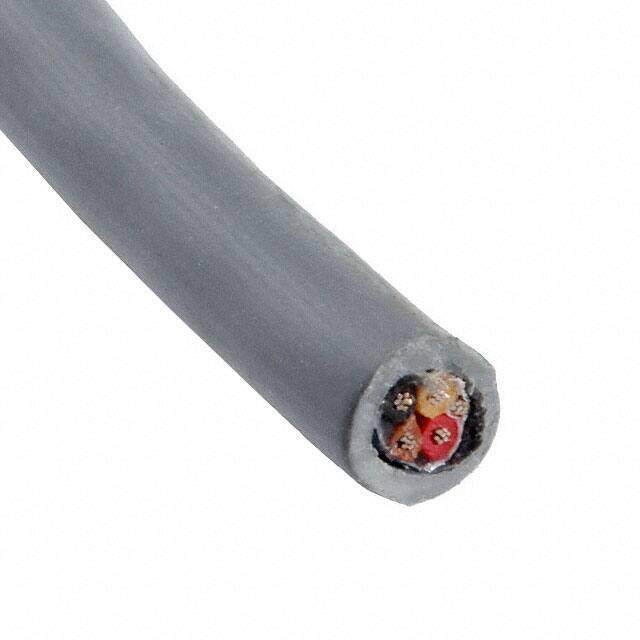

CABLE 4COND 22AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $110.8
Unit Price: USD $110.8008
≥1 USD $110.8008
≥10 USD $102.652
≥100 USD $97.2224
≥500 USD $94.71528
Inventory: 34
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Shielding YES
Construction STRANDED
Number of Conductors 4
Approval Agency CSA, UL
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 7/28
Jacket (Insulation) Diameter 0.192 (4.88mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Cross Section Area 0.35 mm2
Part Status Active
Feature Drain Wire, Rip Cord
Published 2009
Packaging Spool
Operating Temperature -20°C~80°C
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2464
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material POLYVINYL CHLORIDE
Supply Chain
Factory Lead Time 4 Weeks
