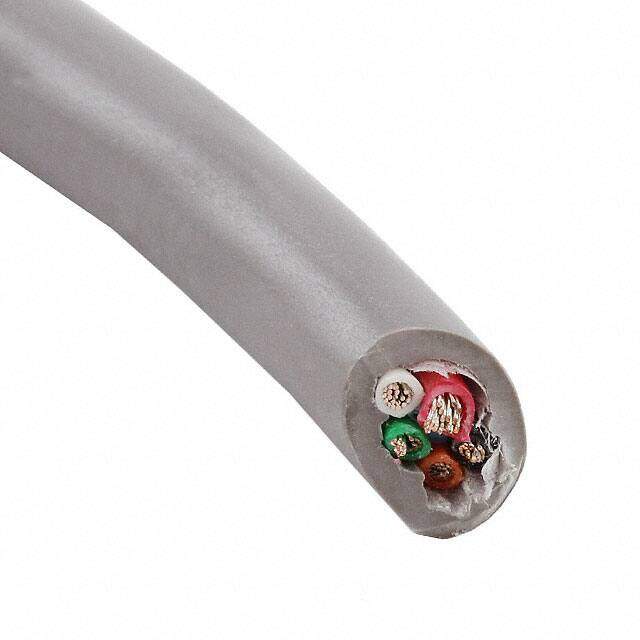

M2405 SL001 image
Favorite
M2405 SL001 image
Favorite

M2405 SL001

Alpha Wire
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description CABLE 5COND 28AWG SHLD 1000'
PDF
/
Inventory: 7031
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned

Technical

Operating Temperature -20°C~80°C
Packaging Spool
Published 2009
Feature Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 5
Wire Gauge 28 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 7/36
Jacket (Insulation) Diameter 0.185 (4.70mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 65%

Dimensions

Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm

Compliance

RoHS Status ROHS3 Compliant
Ratings UL Style 2464
