M1432 WH005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

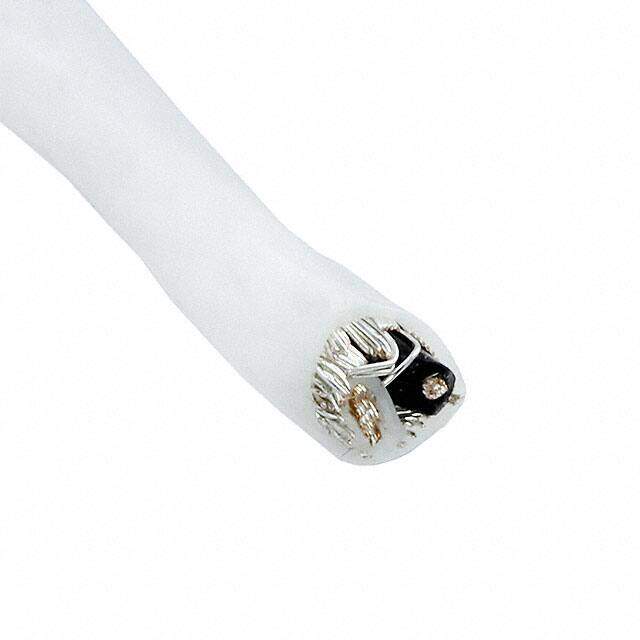

CABLE 2COND 24AWG WHT SHLD 100'
PDF
/
Inventory: 5596
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0160 0.406mm
Length 100.0' 30.5m
Technical
Shield Coverage 90%
Shield Type Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.156 (3.96mm)
Conductor Strand 19/36
Jacket Color White
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 600V
Wire Gauge 24 AWG
Number of Conductors 2
Reach Compliance Code compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2009
Packaging Spool
Operating Temperature -55°C~105°C
Physical
Shield Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
