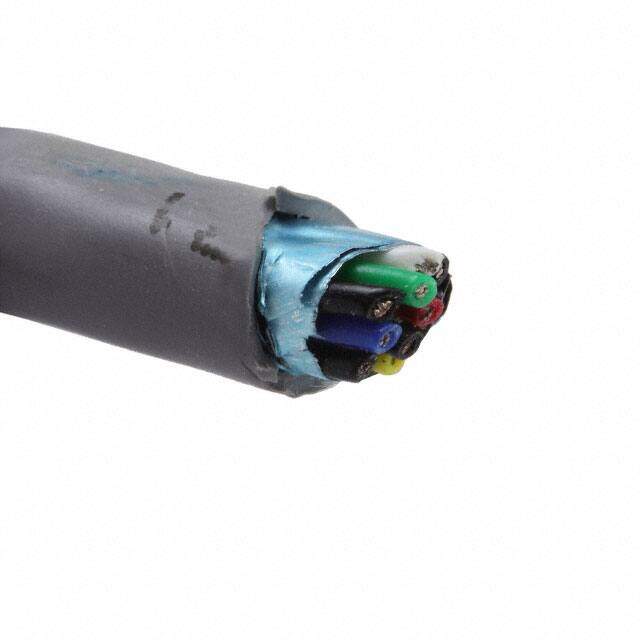

M13194 SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 10COND 24AWG 1000'
PDF
/
Buying Options
Total Price: USD $667.27
Unit Price: USD $667.2688
≥1 USD $667.2688
≥10 USD $621.77867
≥100 USD $621.41552
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 10 (5 Pair Twisted)
Wire Gauge 24 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Slate
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.267 (6.78mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2464
