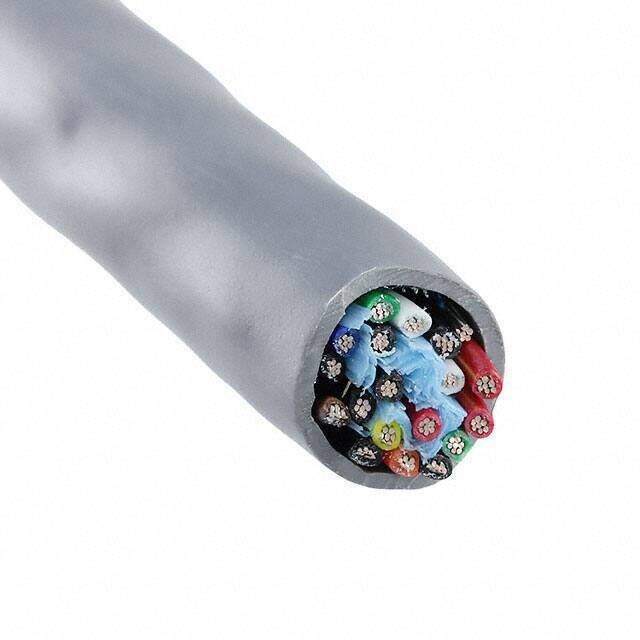

M13149 SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 18COND 20AWG 100'
PDF
/
Buying Options
Total Price: USD $3.54
Unit Price: USD $3.541296
≥1 USD $3.541296
Inventory: 295
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2919
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0470 1.194mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polyethylene (PE)
Jacket (Insulation) Diameter 0.522 (13.26mm)
Conductor Strand 7/28
Jacket Color Slate
Cable Type Multi-Pair
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 18 (9 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Published 2009
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 4 Weeks
