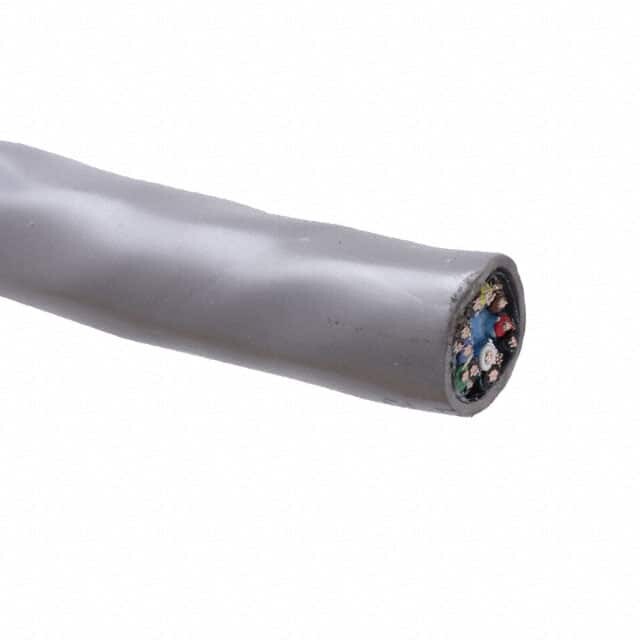

M13146 SL199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CBL 6PR 20AWG SLT 3000=3000'
PDF
/
Inventory: 7637
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 12 (6 Pair Twisted)
Wire Gauge 20 AWG
Voltage 300V
Cable Type Multi-Pair
Jacket Color Slate
Conductor Strand 7/28
Jacket (Insulation) Diameter 0.448 (11.38mm)
Conductor Insulation Polyethylene (PE)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 3000' 914.4m
Jacket (Insulation) Thickness 0.0350 0.889mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2919
