80155 SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

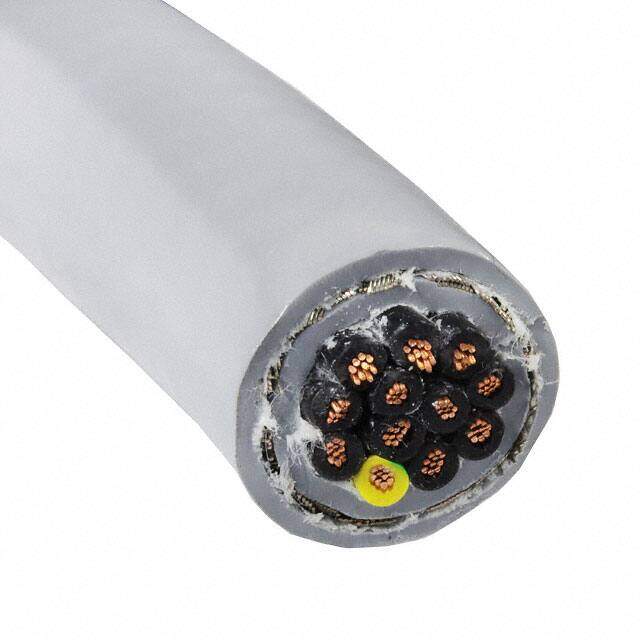

ECOFLEX PUR 12 COND 14AWG BRAID
PDF
/
Inventory: 7982
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Shield Material Copper, Tinned
Technical
Operating Temperature -50°C~90°C
Packaging Spool
Published 2014
Series EcoFlex? PUR
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 12
Wire Gauge 14 AWG
Voltage 600V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 105/34
Jacket (Insulation) Diameter 0.501 (12.73mm)
Conductor Insulation Polyphenylene Ether (PPE)
Shield Type Braid
Shield Coverage 85%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0319 0.810mm
Compliance
RoHS Status ROHS3 Compliant
