80115 SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

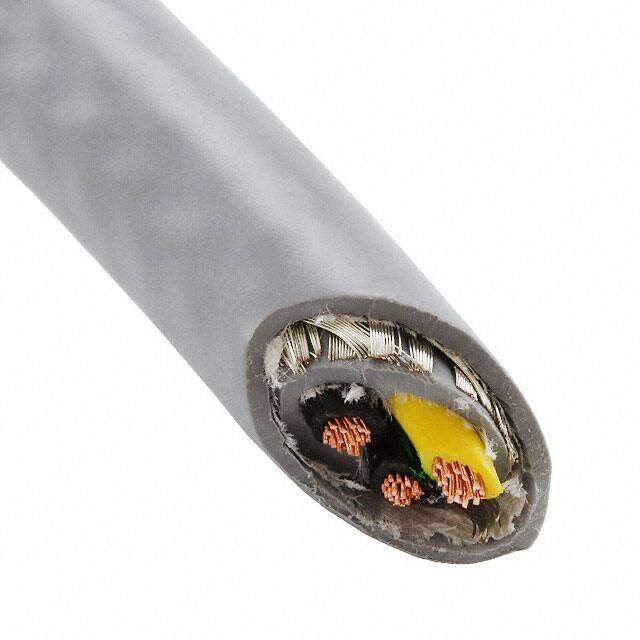

ECOFLEX PUR 3CON 22AWG BRAID
PDF
/
Buying Options
Total Price: USD $280.81
Unit Price: USD $280.808
≥1 USD $280.808
≥10 USD $261.184
≥100 USD $252.08128
Inventory: 28
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0319 0.810mm
Length 100.0' 30.5m
Technical
Shield Coverage 85%
Shield Type Braid
Conductor Insulation Polyphenylene Ether (PPE)
Jacket (Insulation) Diameter 0.208 (5.28mm)
Conductor Strand 19/34
Jacket Color Slate
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 600V
Wire Gauge 22 AWG
Number of Conductors 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series EcoFlex? PUR
Published 2014
Packaging Spool
Operating Temperature -50°C~90°C
Physical
Shield Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 7 Weeks
