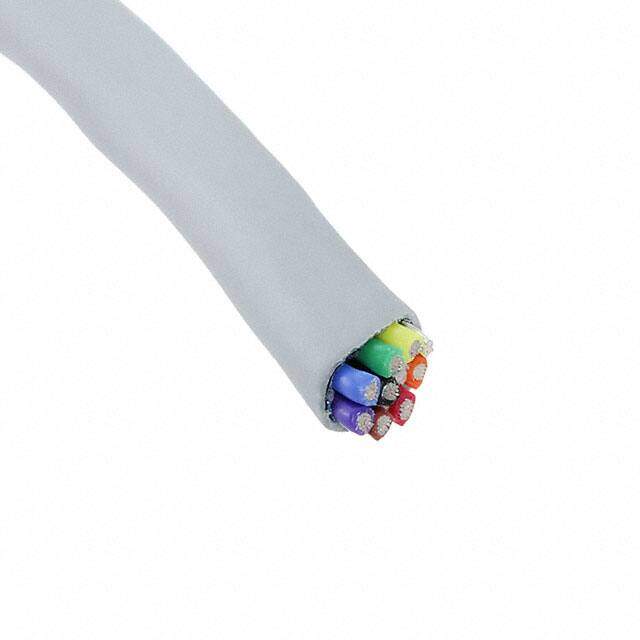

78318 SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 8COND 26AWG SHLD 1000'
PDF
/
Inventory: 8524
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyphenylene Ether, Modified (mPPE)
Shield Material Suprashield?; Copper, Tinned
Technical
Operating Temperature -40°C~80°C
Packaging Spool
Published 2014
Series EcoCable? Mini
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 8
Wire Gauge 26 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 19/38
Jacket (Insulation) Diameter 0.178 (4.52mm)
Conductor Insulation Polyphenylene Ether, Modified (mPPE)
Shield Type Foil, Braid
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0150 0.381mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993, UL Style 21460
