77125 SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

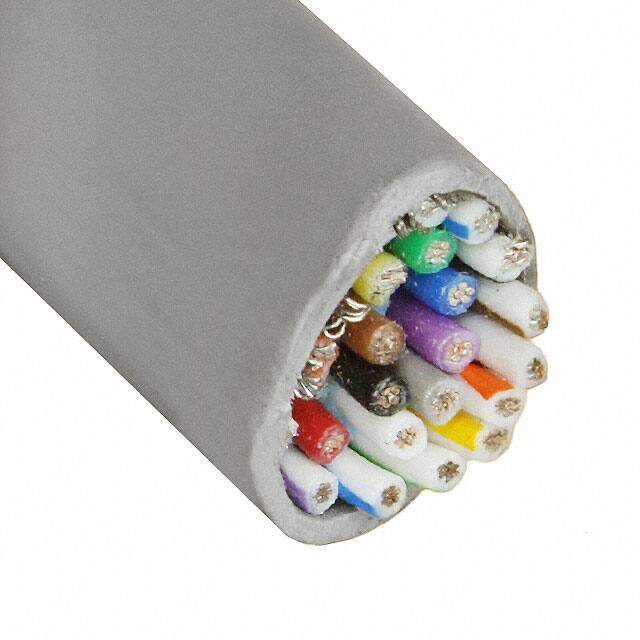

CABLE 25COND 18AWG SHLD 100'
PDF
/
Inventory: 7813
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polyphenylene Ether, Modified (mPPE)
Jacket (Insulation) Diameter 0.474 (12.04mm)
Conductor Strand 16/30
Jacket Color Slate
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 600V
Wire Gauge 18 AWG
Number of Conductors 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility
Series EcoCable?
Published 2013
Packaging Spool
Operating Temperature -50°C~105°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Polyphenylene Ether, Modified (mPPE)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 7 Weeks
