77114 SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

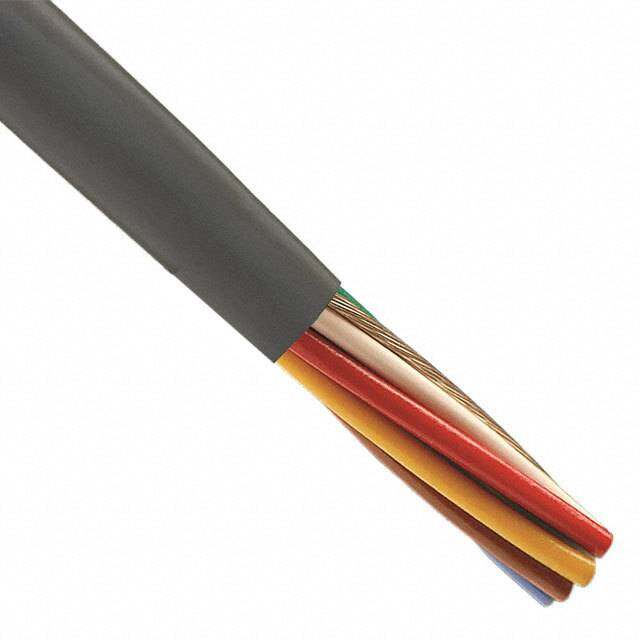

CABLE 9COND 22AWG SHLD 1000'
PDF
/
Inventory: 3508
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyphenylene Ether, Modified (mPPE)
Shield Material Aluminum
Technical
Operating Temperature -50°C~105°C
Packaging Spool
Published 2013
Series EcoCable?
Feature Biological Compatibility
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 9
Wire Gauge 22 AWG
Voltage 600V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.255 (6.48mm)
Conductor Insulation Polyphenylene Ether, Modified (mPPE)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
