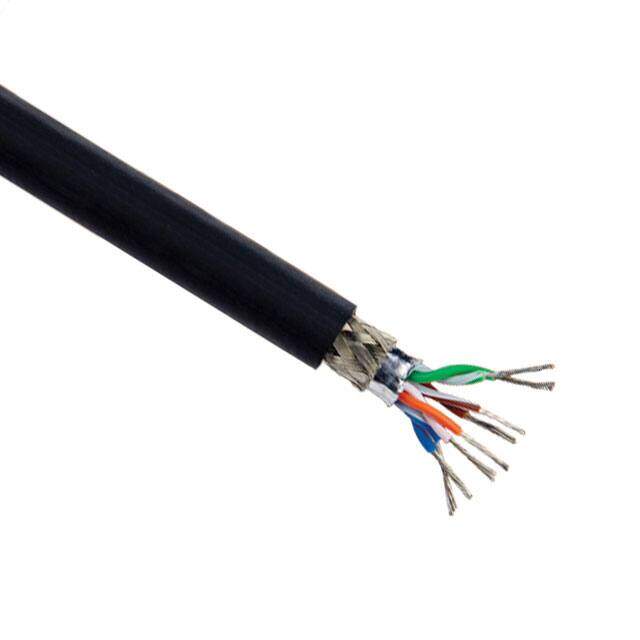

76022 BK002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
XGIE 4PR SOLID BLACK 500'
PDF
/
Buying Options
Total Price: USD $130.54
Unit Price: USD $130.5392
≥1 USD $130.5392
≥10 USD $123.2528
≥100 USD $114.6376
≥500 USD $108.01208
≥1000 USD $102.710784
≥3000 USD $95.422096
Inventory: 49
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0350 0.889mm
Length 500.0' 152.4m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Polypropylene (PP)
Jacket (Insulation) Diameter 0.325 (8.26mm)
Conductor Strand 7/32
Jacket Color Black
Cable Type Multi-Pair, Cat5e
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 8 (4 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard?
Published 2012
Packaging Spool
Operating Temperature -50°C~75°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 7 Weeks
