6623 WH001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

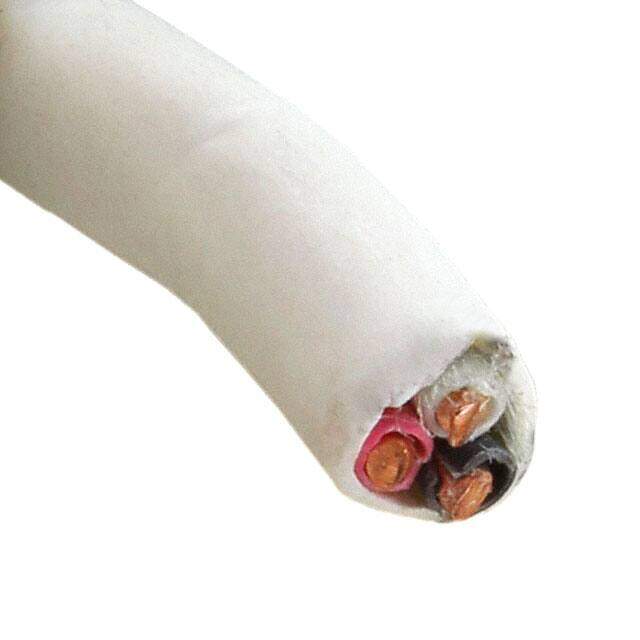

CABLE 3COND 24AWG WHITE 1000'
PDF
/
Buying Options
Total Price: USD $1886.74
Unit Price: USD $1886.7376
≥1 USD $1886.7376
Inventory: 56
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (XLPVC), Irradiated
Technical
Operating Temperature -55°C~105°C
Packaging Spool
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 3
Wire Gauge 24 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color White
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.162 (4.11mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2576
