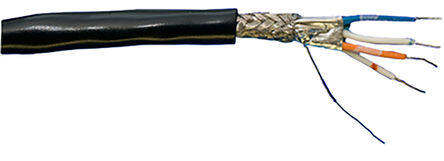

6455 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 4COND 22AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $250.34
Unit Price: USD $250.3424
≥1 USD $250.3424
≥10 USD $231.93573
≥100 USD $219.66208
≥500 USD $217.05112
Inventory: 99
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -20°C~60°C
Packaging Spool
Published 2009
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4 (2 Pair Twisted)
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Black
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.350 (8.89mm)
Conductor Insulation High Density Polyethylene (HDPE)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0530 1.346mm
Compliance
RoHS Status ROHS3 Compliant
