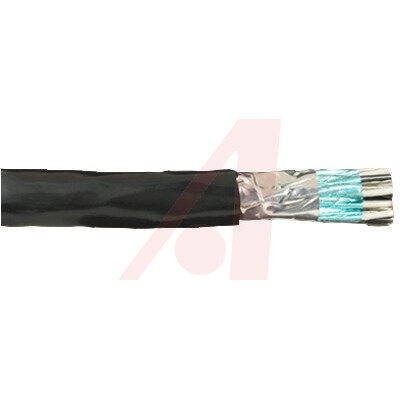

6408 SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 20COND 24AWG 100'
PDF
/
Inventory: 4254
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Published 2005
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 20 (10 Pair Twisted)
Wire Gauge 24 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Slate
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.463 (11.76mm)
Conductor Insulation Polyethylene (PE)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0350 0.889mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2919
