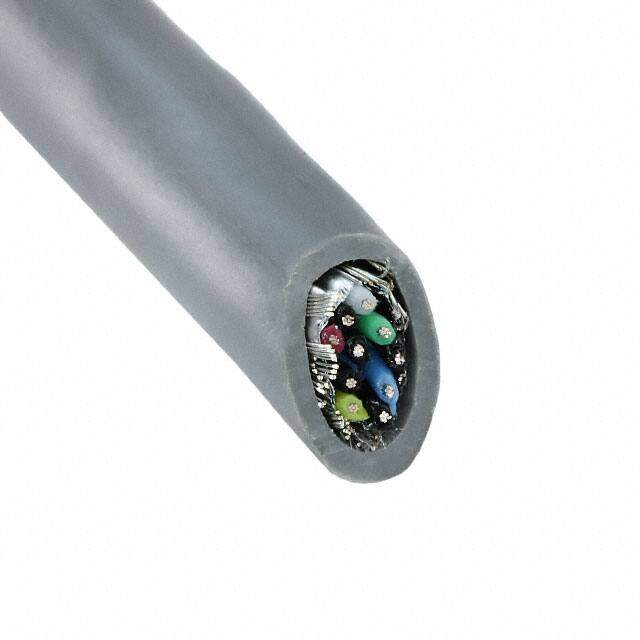

6393 SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 10COND 28AWG 1000'
PDF
/
Buying Options
Total Price: USD $2.98
Unit Price: USD $2.975113
≥1 USD $2.975113
Inventory: 1079
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2960
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0350 0.889mm
Length 1000.0' 304.8m
Technical
Wire and Cable Name COMMUNICATION AND CONTROL CABLE
Shield Coverage 100%, 90%
Shield Type Foil, Braid
Conductor Insulation Polyethylene (PE)
Jacket (Insulation) Diameter 0.252 (6.40mm)
Conductor Strand 7/36
Jacket Color Slate
Cable Type Multi-Pair
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 28 AWG
Approval Agency CE; CSA; UL
Number of Conductors 10 (5 Pair Twisted)
Construction STRANDED
Shielding YES
Resistance 0.217Ohm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Published 2006
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 8 Weeks
