6352 SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

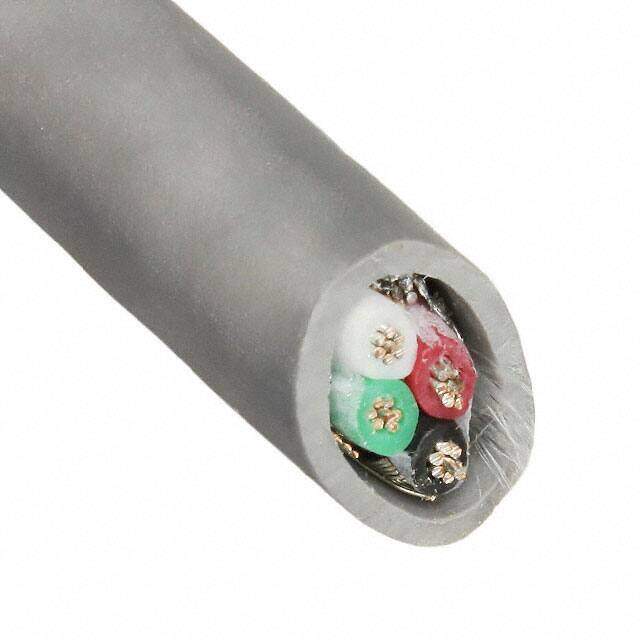

CABLE 4COND 24AWG SHLD 1000'
PDF
/
Inventory: 4694
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Published 2009
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4
Wire Gauge 24 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.231 (5.87mm)
Conductor Insulation Foam Polyethylene (FPE)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0350 0.889mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2919
