6348 SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

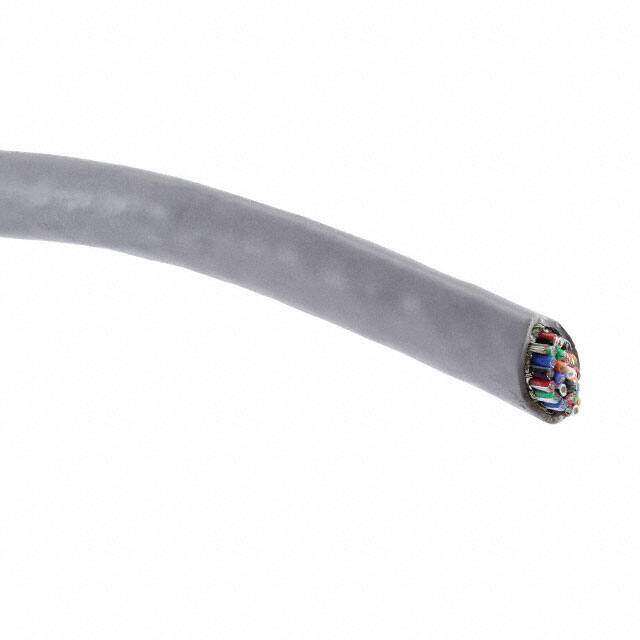

CABLE 25COND 22AWG SHLD 1000'
PDF
/
Buying Options
Total Price: USD $4470.91
Unit Price: USD $4470.9104
≥1 USD $4470.9104
Inventory: 30
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 25
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 7/28
Jacket (Insulation) Diameter 0.390 (9.91mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
