6341 SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

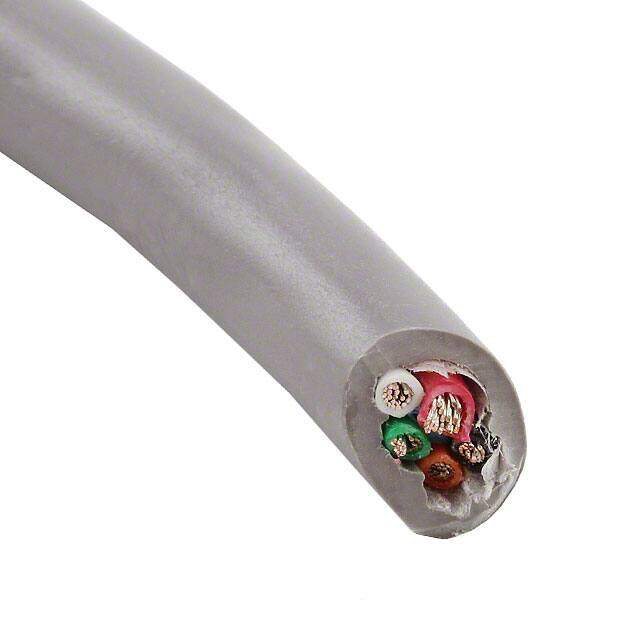

CABLE 5COND 22AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $155.82
Unit Price: USD $155.8216
≥1 USD $155.8216
≥10 USD $150.96693
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Published 2009
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 5
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Slate
Conductor Strand 7/28
Jacket (Insulation) Diameter 0.226 (5.74mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2464
