6036C SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

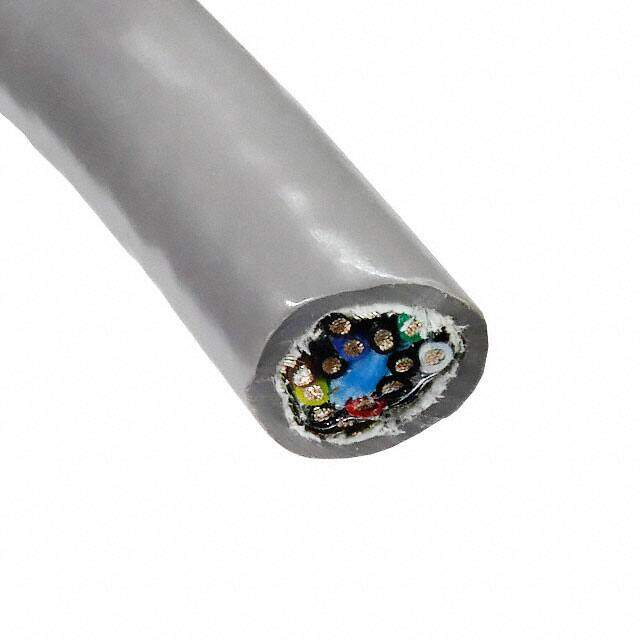

MULTI-PAIR 12COND 20AWG 1000'
PDF
/
Buying Options
Total Price: USD $2567.2
Unit Price: USD $2567.1976
≥1 USD $2567.1976
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~75°C
Packaging Spool
Published 2006
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 12 (6 Pair Twisted)
Wire Gauge 20 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Slate
Conductor Strand 7/28
Jacket (Insulation) Diameter 0.472 (11.99mm)
Conductor Insulation Polypropylene (PP)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0470 1.194mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2493
