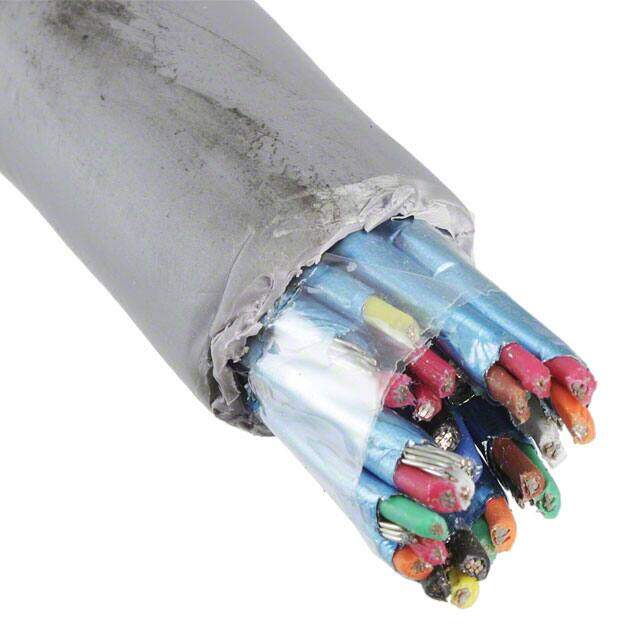

6019C SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 34COND 22AWG 100'
PDF
/
Buying Options
Total Price: USD $1378.46
Unit Price: USD $1378.4584
≥1 USD $1378.4584
Inventory: 71
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~60°C
Packaging Spool
Published 2001
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 34 (17 Pair Twisted)
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Pair
Jacket Color Slate
Conductor Strand 7/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.593 (15.06mm)
Conductor Insulation Polypropylene (PP)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0630 1.600mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
