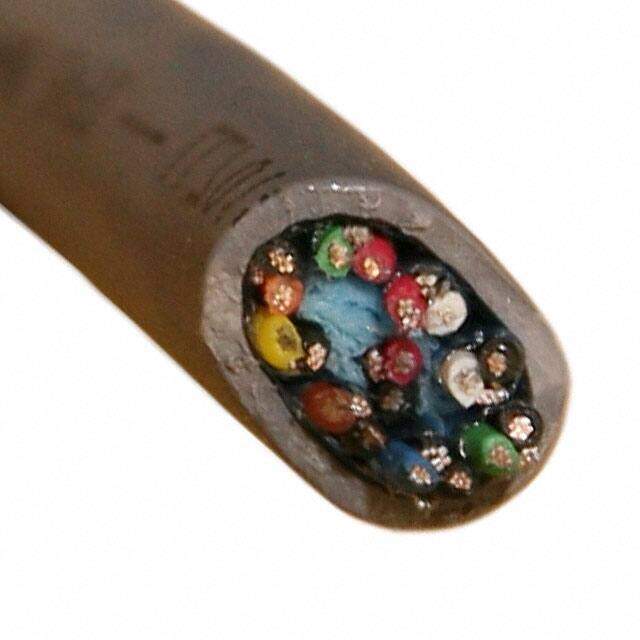

6014C SL199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CBL 9PR 22AWG SLATE 100=100'
PDF
/
Inventory: 8517
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings UL Style 2493
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0480 1.219mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polypropylene (PP)
Jacket (Insulation) Diameter 0.436 (11.07mm)
Conductor Strand 7/28
Jacket Color Slate
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 18 (9 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
