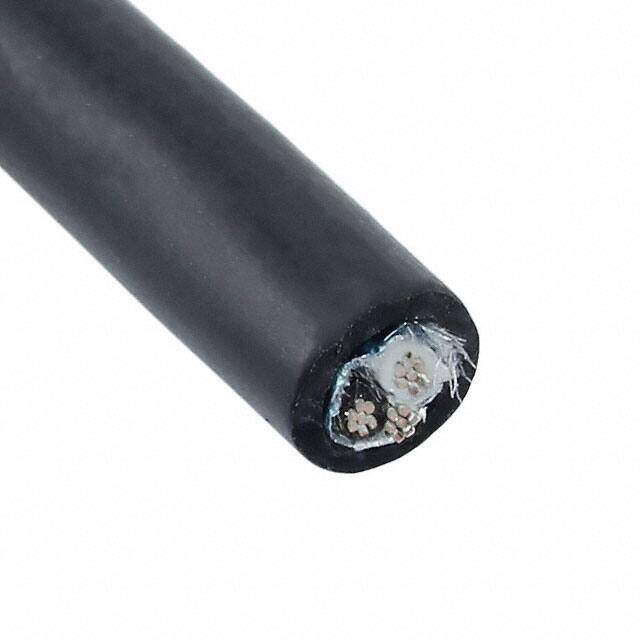

5616B2001 BK199
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CBL 1PR 20AWG BLK 1000 = 1000'
PDF
/
Inventory: 1538
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -25°C~90°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 2 (1 Pair Twisted)
Wire Gauge 20 AWG
Voltage 600V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 7/0.0121
Jacket (Insulation) Diameter 0.220 (5.59mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0400 1.016mm
Compliance
RoHS Status ROHS3 Compliant
