5473L SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

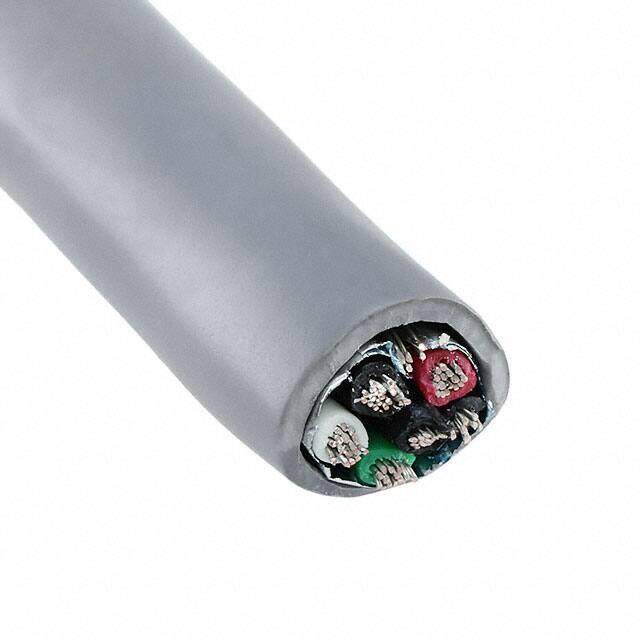

MULTI-PAIR 6COND 24AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $115.39
Unit Price: USD $115.3944
≥1 USD $115.3944
≥10 USD $106.9112
≥100 USD $101.25456
≥500 USD $98.65152
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Low Smoke Zero Halogen (LSZH)
Shield Material Aluminum
Technical
Operating Temperature -20°C~75°C
Packaging Spool
Published 2009
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 6 (3 Pair Twisted)
Wire Gauge 24 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Slate
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.228 (5.79mm)
Conductor Insulation Low Smoke Zero Halogen (LSZH)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0300 0.762mm
Compliance
RoHS Status ROHS3 Compliant
