5174C SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

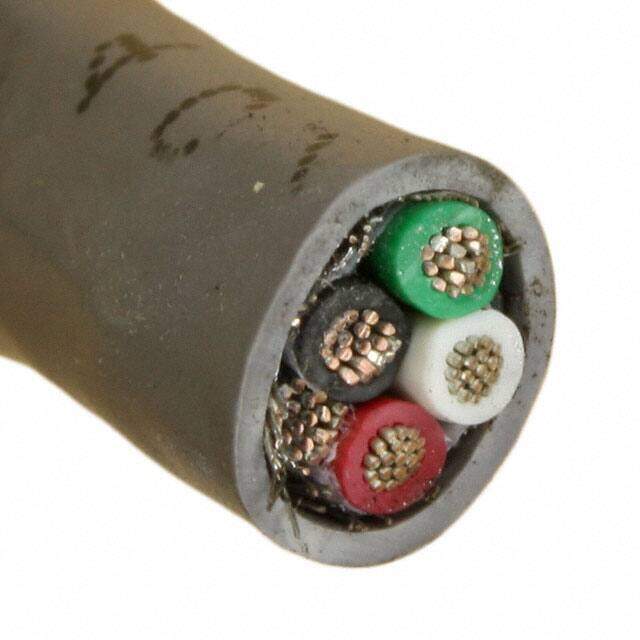

CABLE 4COND 16AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $1009.4
Unit Price: USD $1009.3952
≥1 USD $1009.3952
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993, UL Style 2464
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.316 (8.03mm)
Usage Communication, Control
Conductor Strand 19/0.0117
Jacket Color Slate
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 16 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 1
Published 2001
Packaging Spool
Operating Temperature -35°C~105°C
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 5 Weeks
