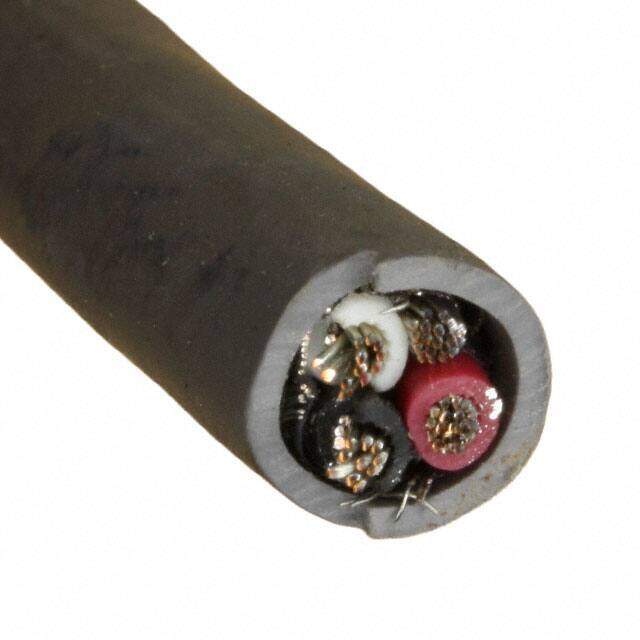

5173C SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 3COND 16AWG SHLD 1000'
PDF
/
Buying Options
Total Price: USD $4525.34
Unit Price: USD $4525.337855
≥1 USD $4525.337855
Inventory: 5744
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993, UL Style 2464
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.292 (7.42mm)
Usage Communication, Control
Conductor Strand 19/0.0117
Jacket Color Slate
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 16 AWG
Approval Agency CE; CSA; IEC; UL
Number of Conductors 3
Construction STRANDED
Shielding YES
Resistance 0.014Ohm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 1
Published 2001
Packaging Spool
Operating Temperature -35°C~105°C
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material POLYVINYL CHLORIDE
Supply Chain
Factory Lead Time 5 Weeks
