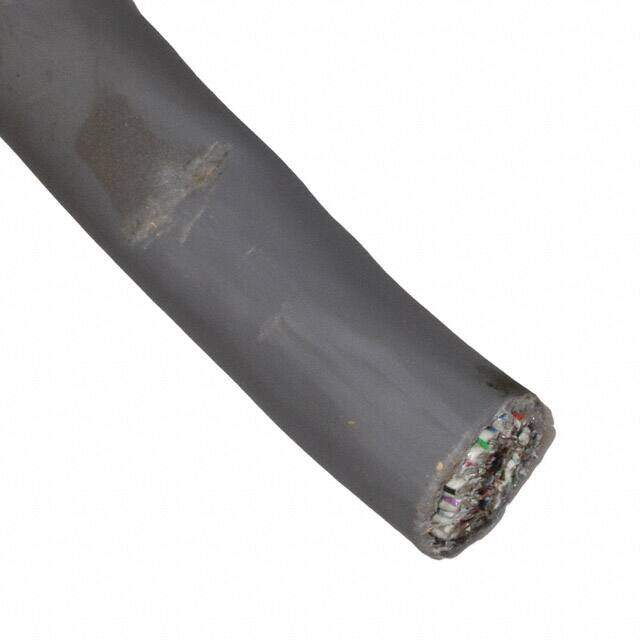

5080/50C SL001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 50COND 16AWG SLATE 1000'
PDF
/
Inventory: 3739
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993, UL Style 2464
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0830 2.108mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.917 (23.29mm)
Usage Communication, Control
Conductor Strand 19/0.0117
Jacket Color Slate
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 16 AWG
Number of Conductors 50
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Biological Compatibility, Rip Cord
Series Xtra-Guard? 1
Packaging Spool
Operating Temperature -35°C~105°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 7 Weeks
