45543 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

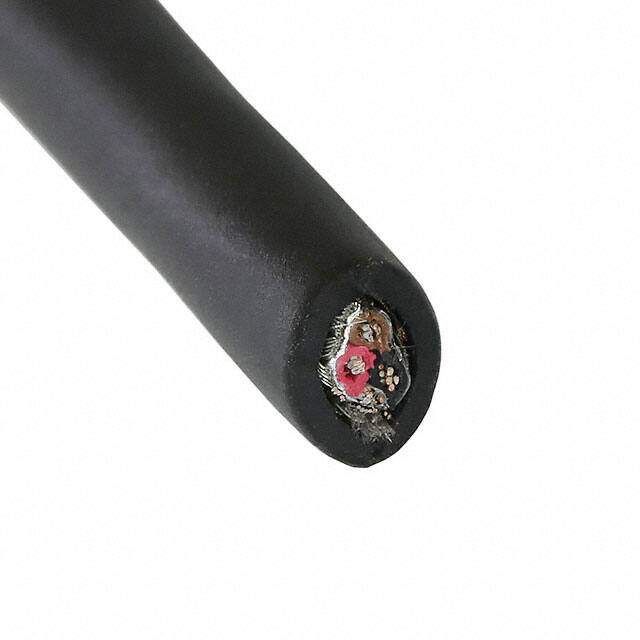

CABLE 3 COND 14AWG BLACK 100'
PDF
/
Inventory: 7424
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0550 1.397mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.440 (11.18mm)
Conductor Strand 14/30
Jacket Color Black
Cable Type Multi-Conductor
Voltage 600V
Wire Gauge 14 AWG
Number of Conductors 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Published 2010
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Suprashield?; Aluminum
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
