45485 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

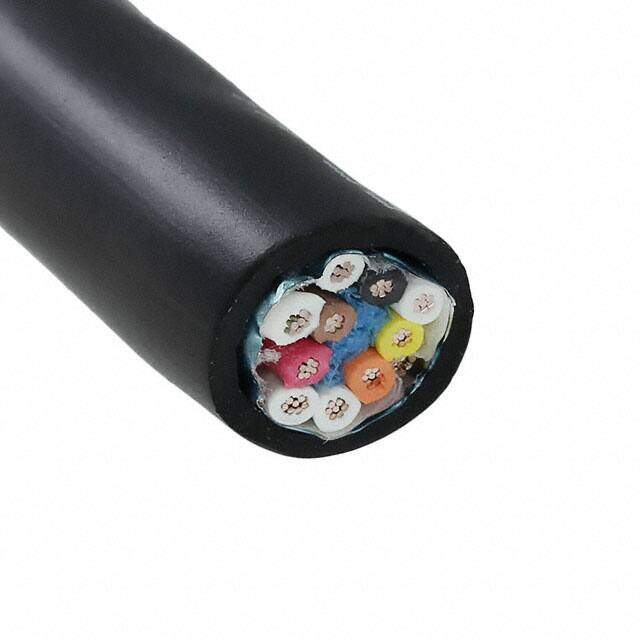

CABLE 5 PAIR 22AWG BLACK 100'
PDF
/
Buying Options
Total Price: USD $711.3
Unit Price: USD $711.304
≥1 USD $711.304
≥10 USD $659.3576
≥100 USD $638.01936
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Shield Material Aluminum
Technical
Operating Temperature -50°C~125°C
Packaging Spool
Published 2011
Series Xtra-Guard? 4
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 10 (5 Pair Twisted)
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Pair
Jacket Color Black
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.374 (9.50mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0450 1.143mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
