45484 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

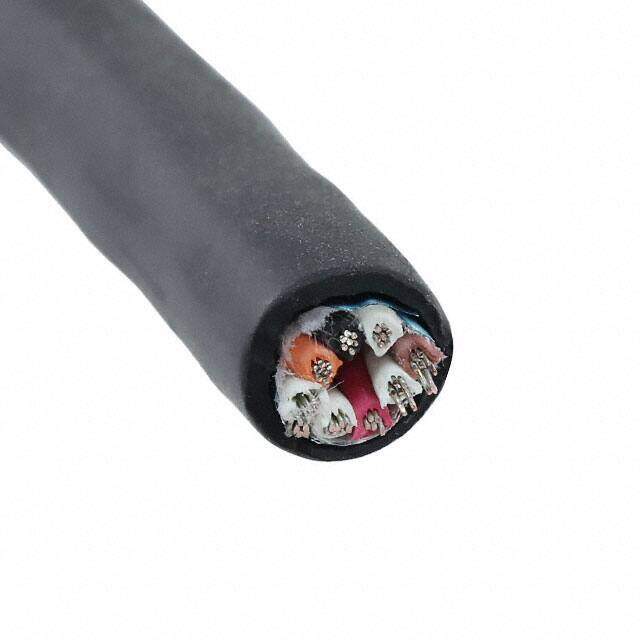

CABLE 4 PAIR 22AWG BLACK 100'
PDF
/
Buying Options
Total Price: USD $521.13
Unit Price: USD $521.1272
≥1 USD $521.1272
≥10 USD $483.0672
≥100 USD $475.8864
Inventory: 120
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0450 1.143mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.344 (8.74mm)
Conductor Strand 7/30
Jacket Color Black
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 8 (4 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Published 2011
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
