45483 BK001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

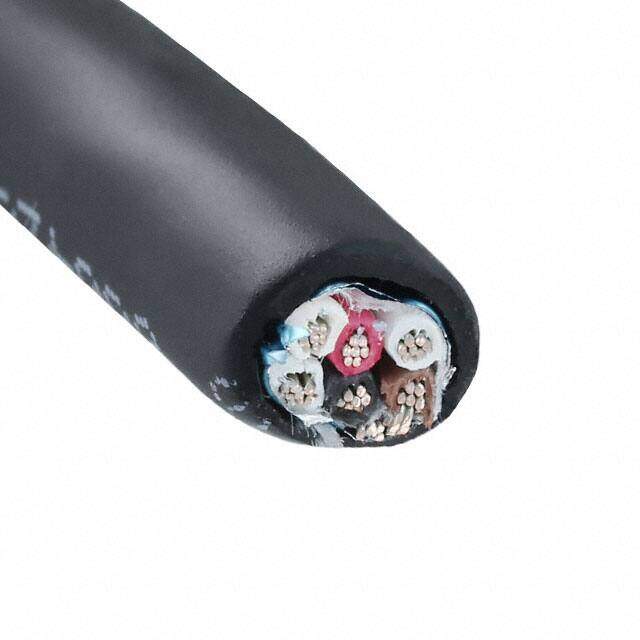

CABLE 3 PAIR 22AWG BLACK 1000'
PDF
/
Inventory: 4960
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0450 1.143mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.317 (8.05mm)
Conductor Strand 7/30
Jacket Color Black
Cable Type Multi-Pair
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 6 (3 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Published 2011
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 5 Weeks
