45466 BK001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

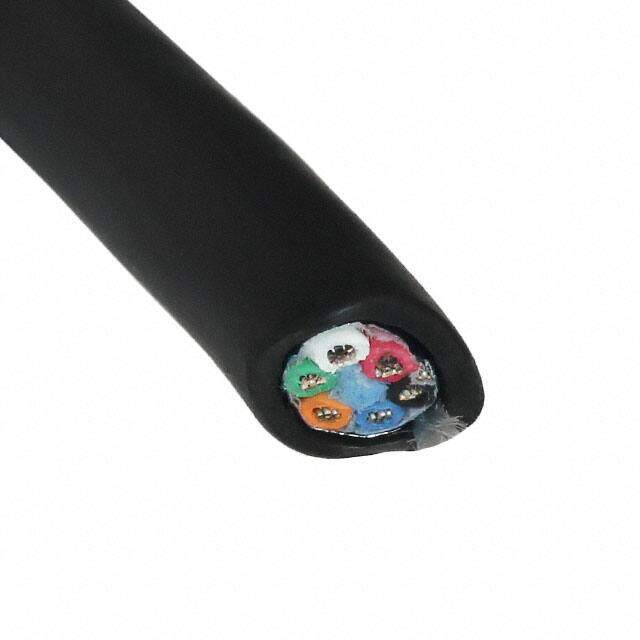

CABLE 6 COND 20AWG BLACK 1000'
PDF
/
Inventory: 3224
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0450 1.143mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.310 (7.87mm)
Conductor Strand 7/28
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Published 2010
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
