45450/3 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

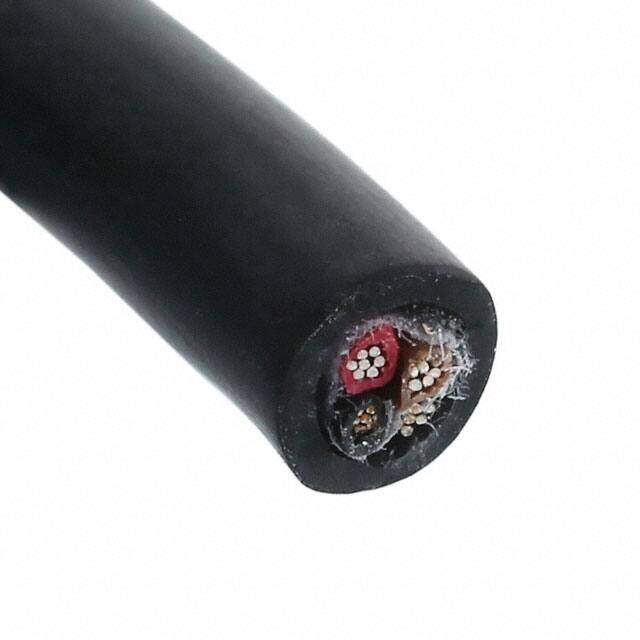

CABLE 3 COND 14AWG BLACK 100'
PDF
/
Inventory: 9271
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Shield Material Aluminum
Technical
Operating Temperature -50°C~125°C
Packaging Spool
Published 2010
Series Xtra-Guard? 4
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 3
Wire Gauge 14 AWG
Voltage 600V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 41/30
Jacket (Insulation) Diameter 0.416 (10.57mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0550 1.397mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
