45444 BK001
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description

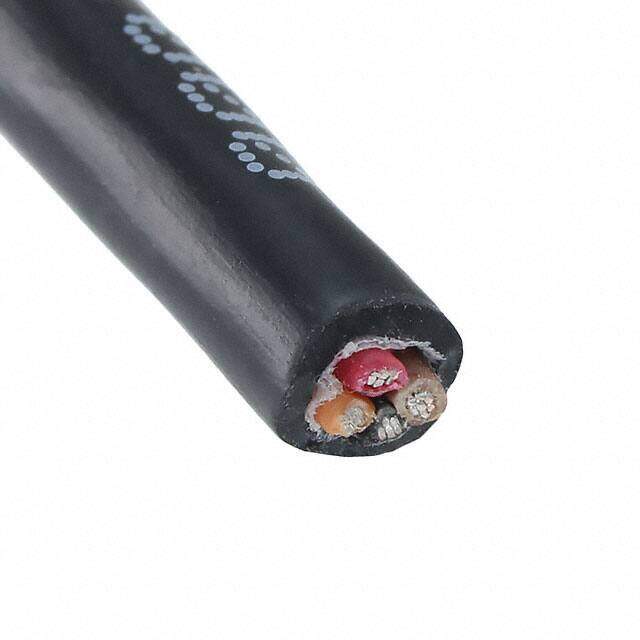

CABLE 4 COND 16AWG BLACK 1000'
PDF
/
Inventory: 1644
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ISO 10993
Dimensions
Jacket (Insulation) Thickness 0.0550 1.397mm
Length 1000.0' 304.8m
Technical
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.448 (11.38mm)
Conductor Strand 41/30
Jacket Color Black
Cable Type Multi-Conductor
Voltage 600V
Wire Gauge 16 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Biological Compatibility, Rip Cord
Series Xtra-Guard? 4
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
