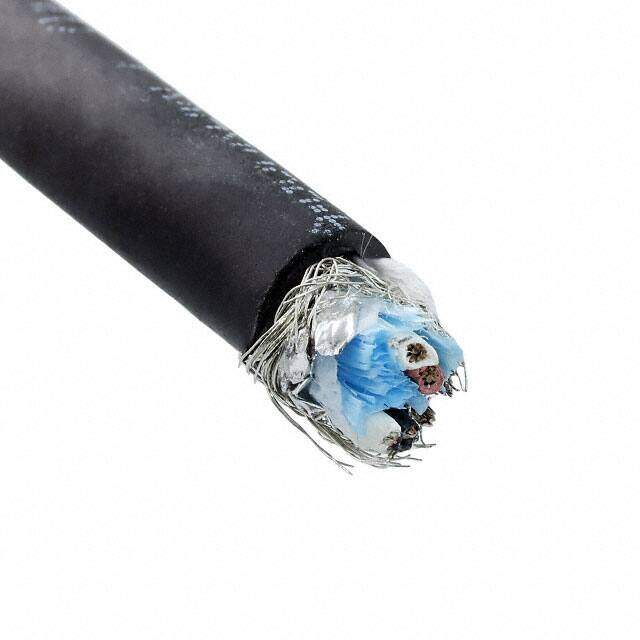

45292 BK001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 2 PAIR 20AWG BLACK 1000'
PDF
/
Buying Options
Total Price: USD $5.02
Unit Price: USD $5.023902
≥1 USD $5.023902
Inventory: 1006
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Shield Material Suprashield?; Copper, Tinned
Technical
Operating Temperature -50°C~125°C
Packaging Spool
Series Xtra-Guard? 4
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4 (2 Pair Twisted)
Wire Gauge 20 AWG
Voltage 300V
Cable Type Multi-Pair
Jacket Color Black
Conductor Strand 7/28
Jacket (Insulation) Diameter 0.352 (8.94mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0450 1.143mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
