45196 BK001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

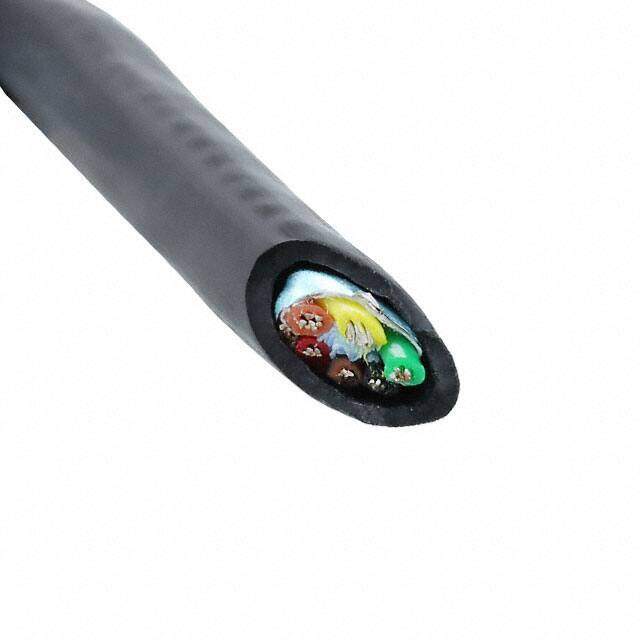

CABLE 6 COND 22AWG BLACK 1000'
PDF
/
Buying Options
Total Price: USD $3145.74
Unit Price: USD $3145.736
≥1 USD $3145.736
Inventory: 29
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Shield Material Aluminum
Technical
Operating Temperature -50°C~125°C
Packaging Spool
Published 2010
Series Xtra-Guard? 4
Feature Biological Compatibility, Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 6
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.285 (7.24mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0450 1.143mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
