45164 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

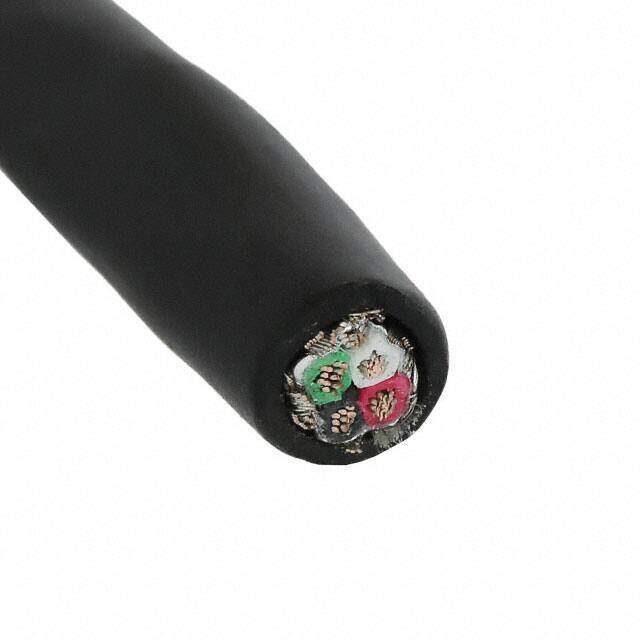

Multicore Cable, Xtra Guard 4, Screened, 4 Core, 18 AWG, 0.81 mm, 100 ft, 30.5 m
PDF
/
Buying Options
Total Price: USD $768.61
Unit Price: USD $768.6096
≥1 USD $768.6096
≥10 USD $744.50933
Inventory: 22
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0450 1.143mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.313 (7.95mm)
Conductor Strand 16/30
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Published 2010
Packaging Spool
Operating Temperature -50°C~125°C
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 5 Weeks
